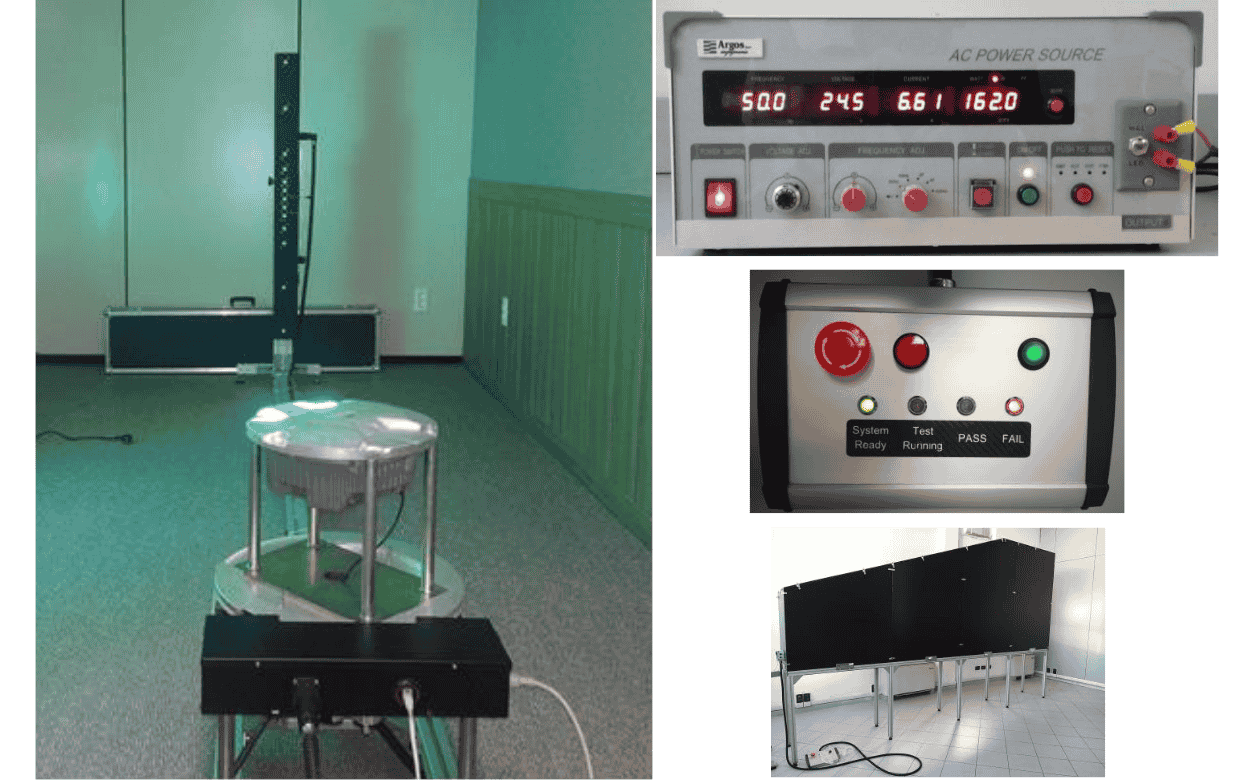

Workshop instrument for indoor photometric measurement of airfield lights.

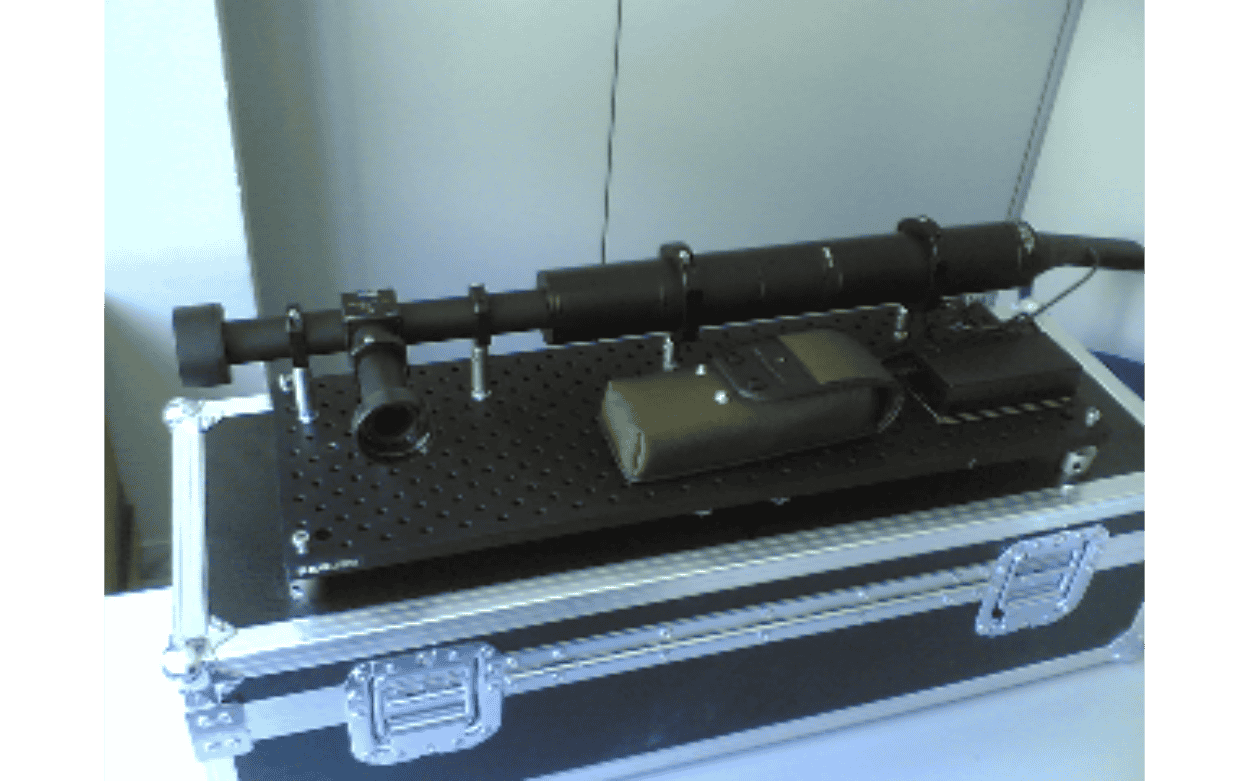

  Measurement sensor bar may be the same of SMF/Mobile system, installed in a steady vertical position, while the signal under test rotates by means of a turntable controlled by SW module installed in a PC.

  A special a rail is supplied to easily install the sensor bar and turntable at the due distance.

  Special mechanical adapters are included into the supply to install on the turn table 8” and 12” inset lights as well as elevated lights.

  On request, SMF/Lab can be supplied with portable dark room including control console as well as a dedicated power supply for halogen and LED lights.
